天体写真撮影で発生しやすいレンズの結露(曇り)を予防するヒーターです。扱いやすさで定評をいただいているレンズヒーター360IVをベースに、電源を5Vから12Vにパワーアップ。同時に最低限の消費電力で効率よく発熱させることで長時間持続を実現。本格的な天体写真撮影において活躍します。
またコントローラーでユーザーお好みの消費電力に対応することでより扱いやすくなっています。12V電源はPower Tank Lithiumなど従来の12Vバッテリーの他、PD対応USBモバイルバッテリーに対応しています。



適切な温度でレンズを保温し、結露を効率的に予防
水蒸気(気体)を含む空気に気温より冷たいレンズが晒されると、レンズに接する水蒸気の温度が下がることで液体になり、レンズに付着します(結露)。
レンズヒーター380-12Vでレンズの温度が気温より低くならならないよう保温することで結露を効率的に予防します。



電力コントローラー付属(電源スイッチ兼用)
最適な消費電力で使用できる電力コントローラー(3段階)を装備しています(着脱可)。ボタン長押しにより電源スイッチとして機能、またボタンを押す毎にHi(高:6W)―Mid(中:4.5W)―Low(低:3.6W)ーHi・・・を繰り返します。好みによりコントローラーなしでも使用できます(消費電力6W固定)。



外径φ140mmをフルカバー、φ45~180mmまでの円筒に取付可(目安)

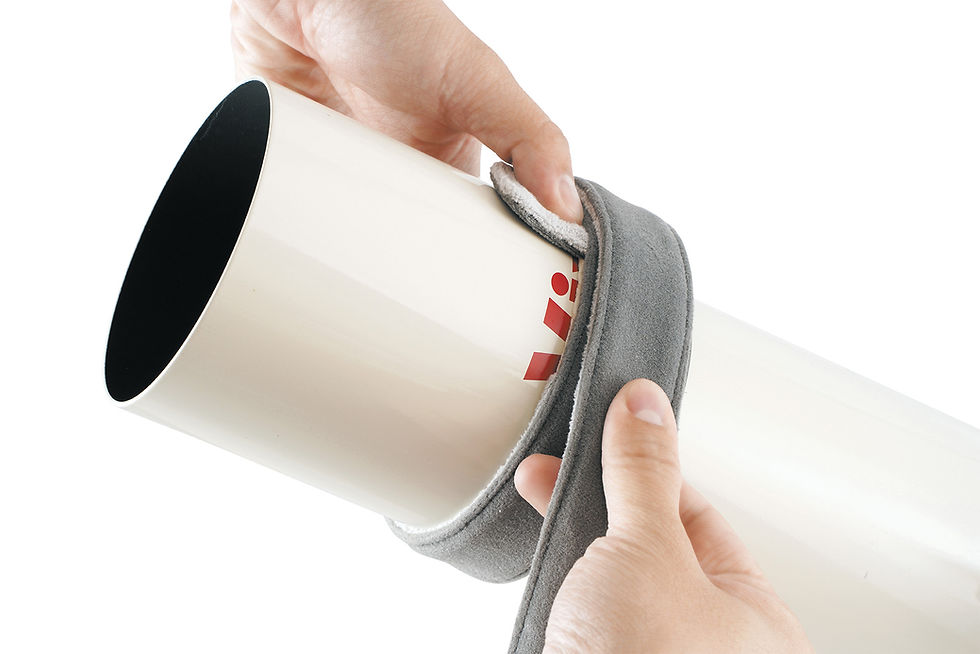

長さ30mm以上、外径φ45~180mmまでの円筒(目安)に巻き付けて使用できます。接眼レンズ、天体望遠鏡鏡筒、カメラレンズなど各種レンズ機器に幅広く対応します。特に外径φ140mm以下であれば発熱体(20×440mm)が円筒を一周し、常に最大効果が得られます。



快適着脱!Silent・Stressfree・Speedy
極薄柔軟なヒーター素材であるカーボンナノチューブを発熱体に採用。また、外装には取外しに力が要らない粘着力で好評の面ファスナー素材:マイルドファスナーを採用しています。着脱時のベリベリ音がなく、ストレスフリー、スピーディな着脱を実現、撮影時間を無駄にしません。



フィンガーフック+滑り止めで簡単確実固定
製品のレンズ当たり面に滑り止めを加工し、加えて側面にフィンガーフックを配置しています。
フィンガーフックを利用して軽いテンションをかけて巻き付けることで、簡単確実に固定でき、使用中のヒーターズレを軽減できます。
フィンガーフックにもマイルドファスナーを加工し、撮影中に邪魔とならないよう畳んで貼付固定できます。



スパイラル電源コード
伸縮性により電源コードを誤ってひっかけた際の転倒を予防、また細い鏡筒であれば適度なテンションで巻き付けることができるため、撮影中のコード風揺れによるブレを低減できます。



USB PD電源、DC12V電源に対応
附属のトリガーケーブルPD12Vにより、USB PD電源(別売または市販)にて動作します。またヒーター本体のスパイラルコード端子に2.1φDCジャックを装備、ACアダプターPD12V-3A(別売)または市販12V電源(2.1φDCプラグ/内径2.1mm、外径5.5mm・センタープラス)にも対応します。



Vixen レンズヒーター 380-12V

¥14,300Price
Sales Tax Included
  • ヒーター形式 カーボンナノチューブヒーター(発熱部:20×440mm)
    温度特性 外気+35℃(ヒーター単体の場合※・コントローラーHiにおいて)
    ※使用時は取付け機器への熱移動により温度特性が変わります。
    電源 USB-PD電源※1、DC12V電源(2.1φDCプラグ)※2 対応
    ※1:USB-PD電源 ACアダプターPD12V-3A(別売)、USB-PDモバイルバッテリー(社外品) etc.
    ※2:DC12V電源(2.1φDCプラグ) PowerTank Lithium / PowerTank Lithium Pro(別売) etc.
    消費電力 DC12V 0.5A 6W(最大)
    電源コード 2.1φDCプラグ(内径2.1mm、外径5.5mm)―USB Type-C
    コード長1,000mm(+スパイラルコード200~500mm)
    コントローラ― 3段コントローラ―(OFF/Hi:100%/Mid:75%/Low:60%)、長さ約300mm
    動作時間目安 USBモバイルバッテリー10,000mAh・37wh(満充電・20℃)使用時
    High(100%):約6.1時間
    Mid(75%):約8.2時間
    Low(60%):約10.3時間
    外気温、使用環境、バッテリー状態や特性に依存
    取付目安 円筒状の部位 長さ30mm以上、外径45~180mm(推奨)
    主要付属品 トリガーケーブルPD12V、3段コントローラ―
    商品サイズ W×D×H 30×800mm(除・突起部、コントローラー・ケーブル別)
    本体重量 約95g(本体46g、コントローラー24g、ケーブル25g)
